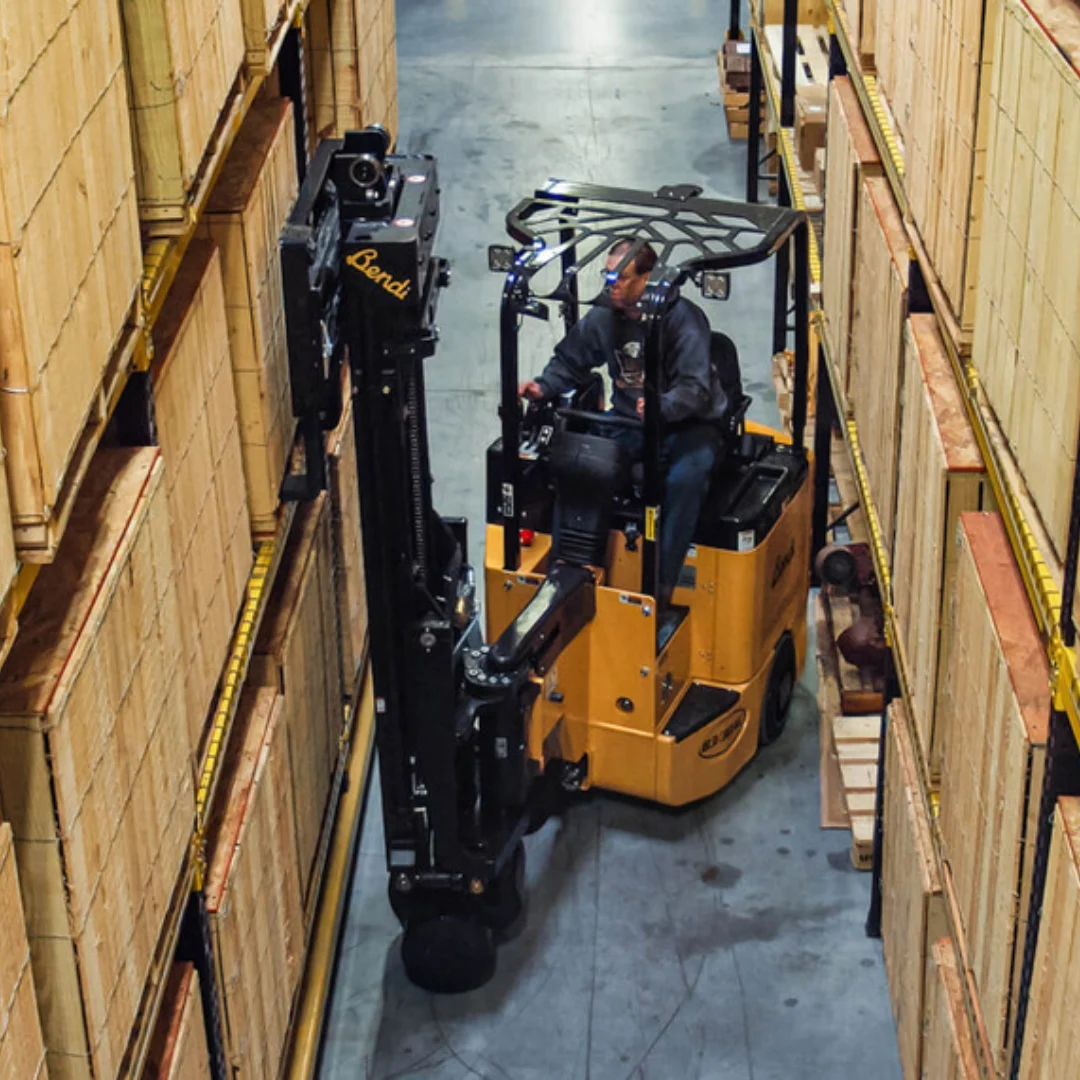

The Landoll Bendi B3/30AC is an electric multi-purpose articulated VNA forklift engineered to eliminate the need for reach trucks and counterbalanced lifts by performing all material handling jobs in one machine. Featuring a 3-wheel configuration with a single polyurethane front drive wheel and solid rubber rear tires, it navigates stacking spaces down to 66 inches (1,676 mm) while providing maximum lift heights up to 360 inches (9.14 m).
As the exclusive dealer and distributor of Landoll Bendi equipment in the Kingdom of Saudi Arabia, Abdullah Hashim Co. Ltd. Auto & Equip Division provides complete nationwide support, genuine replacement parts, and dedicated field maintenance services across regional hubs in Jeddah, Riyadh, and Dammam. Equipped with LandActive™ speed-control steering, high-efficiency Curtis AC motor controllers, and a 48V electric system, the Bendi B3/30AC boosts storage density, operator productivity, and operational safety.
Specs & Features
- Lift Capacity: 3,000 lbs (1,361 kg) at 24″ (600 mm) load center
- Lift Heights: Standard options from 156″ (3.96 m) up to 360″ (9.14 m)
- Minimum Clear Aisle:
- 66″ (1,676 mm) for loads
- 72″ (1,828 mm) for loads
- Front Articulation: articulating front end
- Powertrain & Electrical: 48-Volt electrical system with Curtis AC traction (5.1 kW) and hydraulic (12 kW) controllers
- Speed Parameters:
- Travel Speed: 5.5 mph (8.9 kph) loaded | 6.0 mph (9.7 kph) unloaded
- Lift Speed: 90 fpm (27.4 mpm) loaded | 110 fpm (33.5 mpm) unloaded
- Dimensions:
- Chassis Width: 44.8″ (1,138 mm)
- Overall Length to Fork Face: 109.9″ (2,791 mm)
- Overhead Guard Height: 87″ (2,209 mm)
- Wheelbase: 69.6″ (1,768 mm)
- Tires: Smooth polyurethane front drive tire () and solid rubber rear tires ()
Key Comfort & Safety Features:
-
- DuraSteer™ hydraulic front-wheel steering
- LandActive™ speed controller based on steering angle
- Interactive LCD status monitor with BDI, hour meter, and service/diagnostic display
- (248 mm) stroke integral side shifter
- High-visibility mast with 36″ (914 mm) high backrest
- Creep speed mode switch and hydraulic rear-wheel brakes
Q: Who is the official dealer of Bendi articulated forklifts in Saudi Arabia?
A: Abdullah Hashim Co. Ltd. Auto & Equip Division is the exclusive dealer and distributor of Landoll Bendi material handling equipment across Saudi Arabia.
Q: How narrow can the aisle be for the Bendi B3/30AC? A: The Bendi B3/30AC can stack and retrieve pallets in clear aisles as narrow as 66 inches (1,676 mm) for standard loads.
Q: What is the maximum load capacity and lift height of this model? A: It handles up to 3,000 lbs (1,361 kg) at a 24-inch load center and offers lift heights reaching up to 360 inches (9.14 meters).
Q: Can the Bendi B3/30AC operate outdoors? A: Yes, the B3/30AC is designed to operate seamlessly both indoors inside VNA racks and outdoors on paved surface loading docks.
Q: What power system does the Bendi B3/30AC use? A: It runs on a 48-Volt electric battery system equipped with high-efficiency AC traction and hydraulic motor controllers.
